Tank Truck Parts

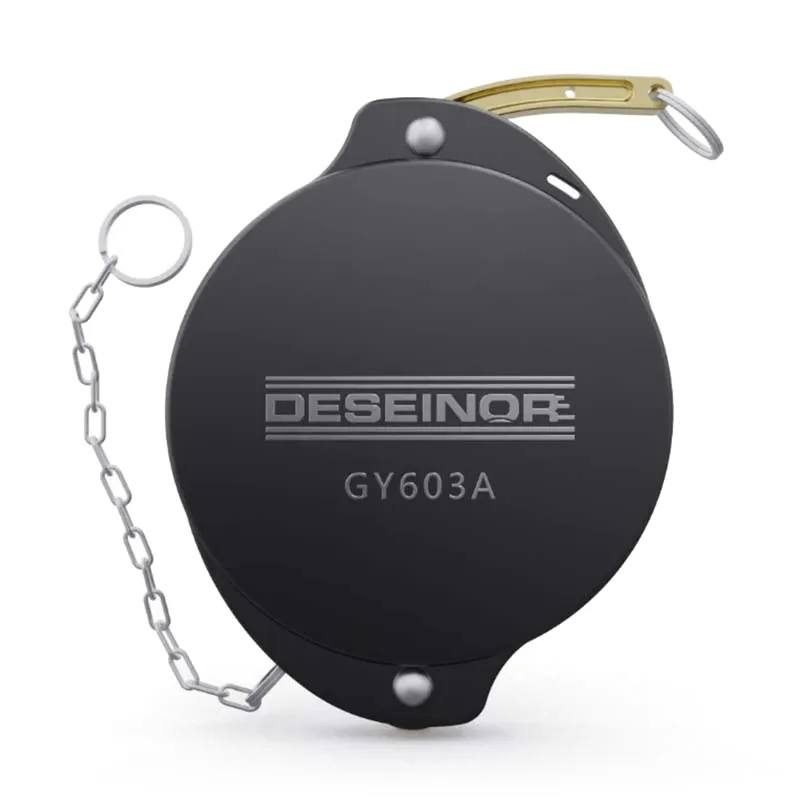

API Dust Cap
Attached to the fuel tanker via a chain to protect API adapter against dust and contaminants
Tank Truck Parts
API Dust Cap
Attached to the fuel tanker via a chain to protect API adapter against dust and contaminants
Specifications
- Nominal diameter: 4''
- Nominal pressure: 0.6MPa
- Sealing pressure: 25kPa
- Seal material: Nitrile/fluorine rubber
- Body material: Aluminum alloy
- Temperature range: -40℃ to +70℃
Product Overview
The API dust cap is designed to protect the API adapter when not in use, shielding the valve from dust, moisture, and physical damage during transport and storage. It plays a critical role in maintaining system cleanliness and protecting fuel quality by preventing contaminants from entering the connection interface.
Our API dust caps are engineered for durability and ease of use, featuring a lightweight die-cast aluminum construction with a special proprietary coating that resists cracking, flaking, or peeling even under extreme conditions. Each cap is designed for one-handed operation, making it fast and convenient to install or remove without tools.

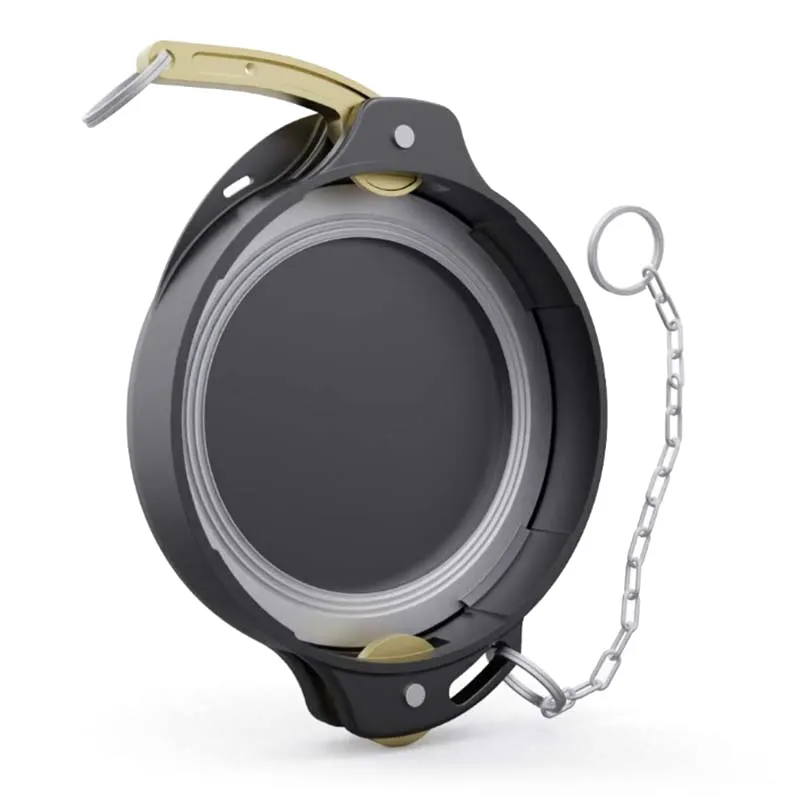

The API dust cap features an internal sealing gasket (made of NBR or Viton, depending on model) that provides a tight seal against residual fuel leaks and keeps the system pressure-safe when inactive. A pre-installed stainless steel chain keeps the cap securely tethered to the tanker, and integrated lock holes allow for tamper-evident lead seals if needed.
Features
- Lightweight die-cast aluminum body with high structural strength and corrosion resistance
- Cam and lug design allows for easy operation with a secure fit
- Compliant with API RP1004 specifications for fuel handling systems
- Fitted with durable NBR or Viton gasket for positive sealing under rated pressure
- Includes pre-molded lock hole for lead sealing
- Comes with a stainless steel chain to prevent misplacement
Drawings Download
What sizes and models of tank truck API dust caps are available? Are they compatible with various systems?
What sizes and models of tank truck API dust caps are available? Are they compatible with various systems?
Our standard API dust caps are available in 4-inch size, compatible with API adapters, emergency shut-off valves (bottom loading valves), discharge outlets, and quick couplers. Models include the standard API dust cap, C-series quick-connect dust cap, and flanged dust cap. You can provide your interface specifications, and we’ll recommend the right model.
Do your fuel tanker API dust covers come with sealing gaskets? How effective is the sealing performance?
Do your fuel tanker API dust covers come with sealing gaskets? How effective is the sealing performance?
Yes, all DESEINOR dust caps are equipped with NBR or Viton sealing gaskets, which effectively block dust and moisture from entering valve interfaces. Select models support replaceable gaskets for extended product life and continued sealing integrity.
Other Tank Truck Components View All
With more than 2,000 types of tanker truck components, DESEINOR can realize one-stop purchase for customers.
Professional tanker parts manufacturer established in 2008
- 13000m² factory area
- 30,000 sets/year tanker spare parts production capacity
- Products have been exported to more than 50 countries
