Tank Truck Vents

Pressure Vacuum Vent

Designed to prevent excessive pressure and vacuum buildup in fuel tankers during filling, discharging and tanker movement

Pressure Vacuum Vent
  • Pressure Vacuum Vent
  • Pressure Vacuum Vent
  • Pressure Vacuum Vent

    • Tank Truck Vents

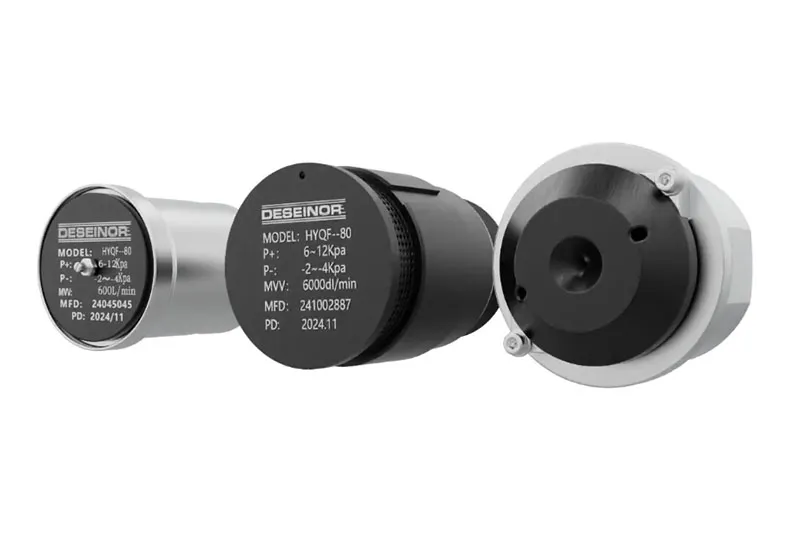

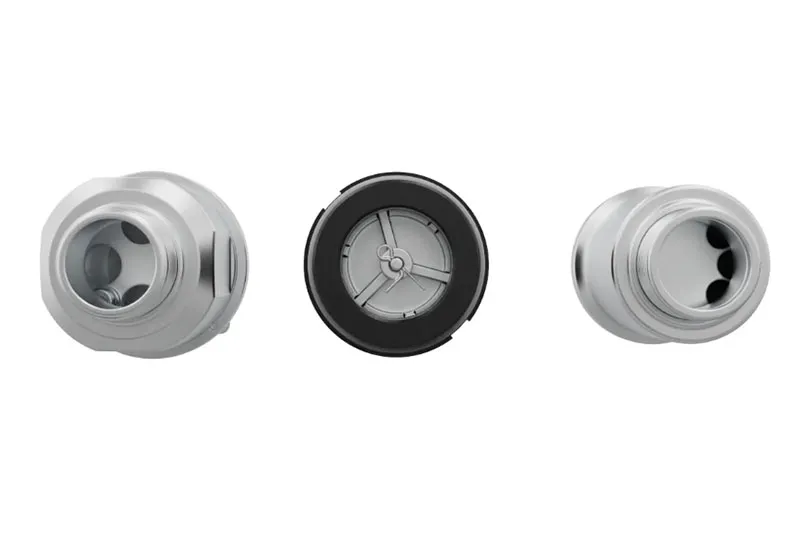

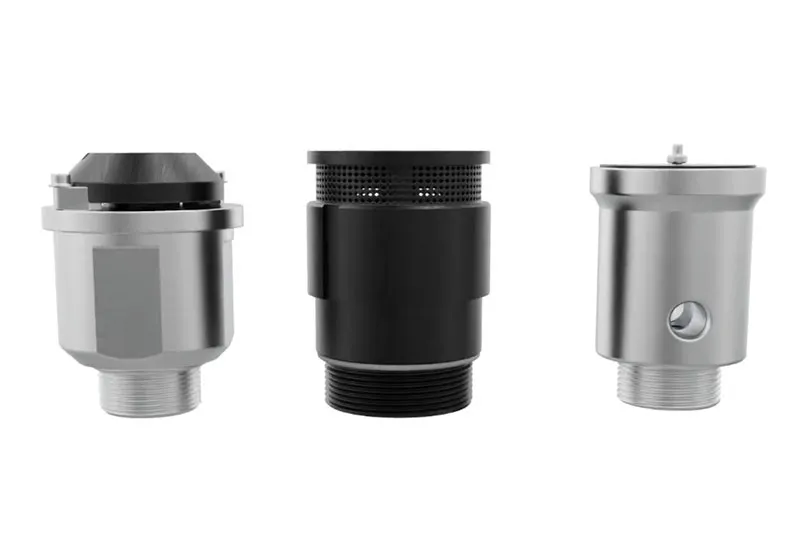

    Pressure Vacuum Vent

    Designed to prevent excessive pressure and vacuum buildup in fuel tankers during filling, discharging and tanker movement
    Specifications
    • Nominal diameter: 1.2''/1.5''/2''
    • Set pressure: Positive pressure: 6 to 12kPa; Negative pressure: -2 to -4kPa
    • Seal material: Fluorine rubber
    • Body material: Aluminum alloy
    • Installation: Thread/flange
    • Temperature range: -40℃ to +70℃
    Request a Quote
    Product Overview

    Maintaining safe pressure balance inside fuel tanks is essential for both operational safety and equipment longevity. That’s why DESEINOR offers a pressure vacuum vent designed to prevent dangerous pressure buildup or vacuum conditions during fuel loading, unloading, and transit movement.

    Engineered to stop fuel spillage in the event of a tanker rollover and with ADR-compliant performance, this vent simplifies maintenance by reducing internal components by 45% making maintenance faster and easier compared to conventional models. A single 1.5"/12 hex nut mounted at the base of the manhole lift valve allows it to endure extreme shock, vibration, and impact conditions. In the event of a tanker rollover or other accident, the valve automatically seals in reverse to prevent fuel leakage. This has consistently demonstrated its reliability in real-world operations, helping to safeguard lives, prevent accidents, and avoid costly fuel spills that could result environmental hazards.

    Features
    • The vent delivers an exhaust flow rate of 1,900 SCFH at 3 psig.
    • Under a vacuum of 1 psig, it provides a flow rate of 4,000 SCFH.
    • It can be installed directly into standard 10-inch manhole covers, allowing easy integration into existing systems.
    • The design is lightweight and durable, weighing only 14.4 ounces, making it suitable for rugged fuel transport environments.
    • Tool-free maintenance and cleaning simplify service operations and reduce downtime.
    • A built-in dust screen prevents foreign objects from entering the valve core, protecting internal components.

    Commonly referred to as a P/V vent, this tank truck equipment is installed at the discharge end of a vent pipe connected to a gasoline storage tank. It automatically adjusts internal pressure by allowing vapors to escape during overpressure and permitting external air to enter during vacuum conditions, maintaining tank integrity.

    Pressure vacuum vent is widely used on fuel tanker trucks worldwide. It can be fitted on the base plate of a manhole cover or directly on the tanker shell, depending on the vehicle’s design and operational needs.

    The tank truck vent complies with international standards such as ADR, and is engineered to withstand extreme impact forces often encountered during petroleum transport. It also features a reverse-sealing mechanism to prevent fuel leakage in the event of a tanker rollover, collision or other accident, enhancing vehicle and environmental safety.
