    Skid Mounted LPG Filling Station

    Skid filling station for LPG filling of vehicles and gas cylinders

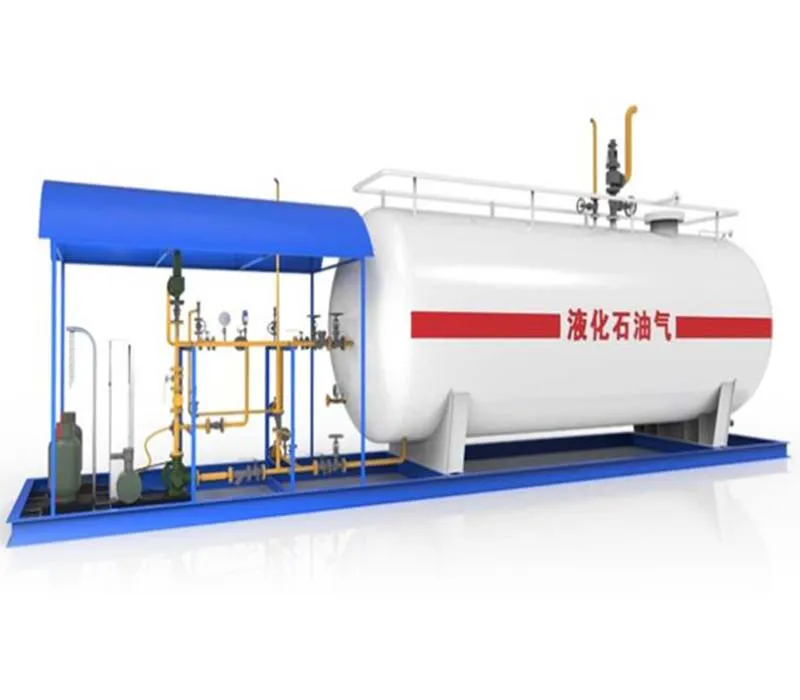

    The skid mounted LPG filling station is an integrated modular system designed for the storage, transfer, and filling of liquefied petroleum gas (LPG) for vehicles and gas cylinders. Pre-assembled for immediate deployment, the filling system is ideal for use in areas requiring efficient, compact, and mobile LPG distribution.

    Request a Quote
    Product Overview

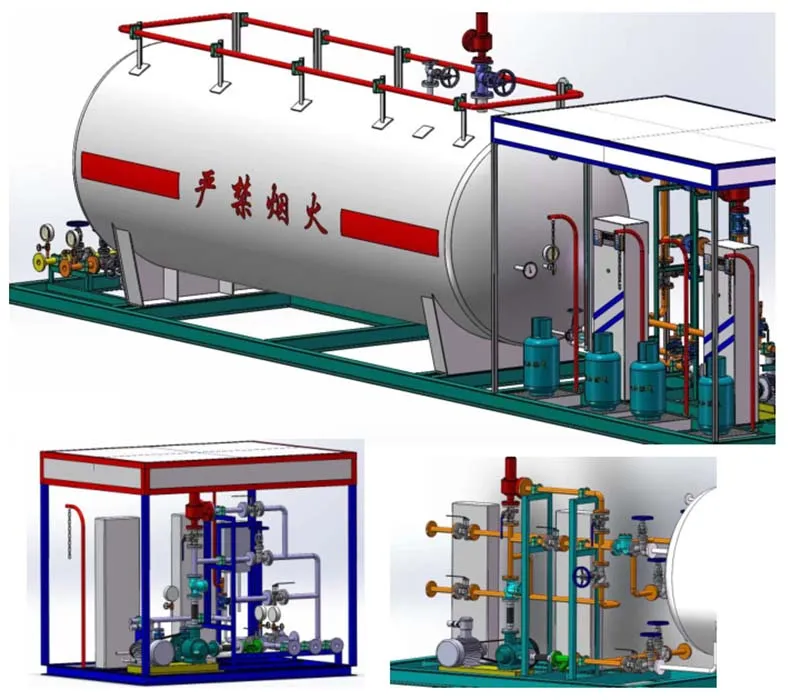

    Our skid unit includes a full set of essential components: LPG storage tank, unloading arm, hydrocarbon pump, electronic filling scale, piping valves, gas leak detectors, automatic control system, and electrical control panel. The entire system is mounted on a single skid base for ease of transport and setup.

    This solution offers several key advantages:

    • No on-site installation required
    • Compact footprint and full-functionality
    • Low investment and simple operation

    It is widely applicable in LPG vehicle fueling, bottled gas refilling, and small-scale distribution sites, providing a safe, reliable, and cost-effective option for LPG handling.

    Features
    • Unloading function: When an LPG tanker arrives on-site, the unloading arm connects to the system. With assistance from the hydrocarbon pump, LPG is transferred through liquid and vapor pipelines into the storage tank for secure containment.
    • Filling function: LPG from the storage tank flows through the liquid-phase pipeline, driven by the pump, into the electronic filling scale, where cylinders are filled. Excess LPG is returned to the storage tank via a recirculation line, forming a closed loop system.
    • Safety design: All storage tanks and pipelines are equipped with manual release valves and safety valves. Higher-tier models also include emergency shut-off valves and gas leak detectors, supporting both manual and automatic safety discharge modes.
    • Electrical requirements: The hydrocarbon pump and electronic filling scale require power input at 380V and 220V, ensuring stable operation of the system.
    Dimensions of Skid
    Model Length Width Height Weight
    LPG-Q05 5500mm 1200mm 2000mm ～2500kg
    LPG-Q10 6500mm 1600mm 2300mm ～3500kg
    LPG-Q15 9000mm 1800mm 2500mm ～4700kg
    LPG-Q20 10000mm 2000mm 2700mm ～5900kg
    LPG-Q30 11500mm 2200mm 2900mm ～7500kg
    LPG-Q50 13000mm 2600mm 3200mm ～11500kg

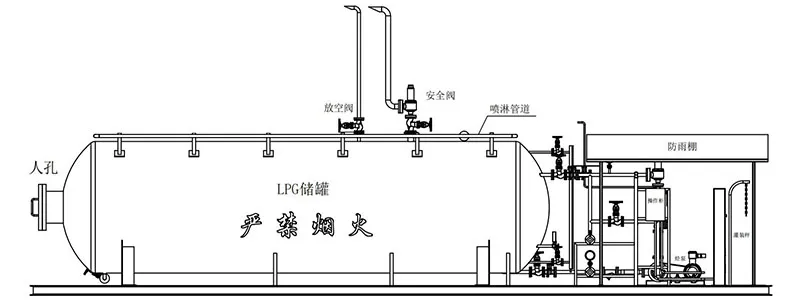

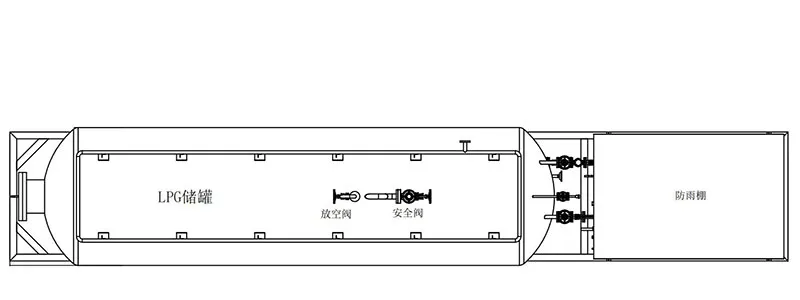

    Technical drawings of the skid-mounted LPG filling station for reference

    • Skid Mounted LPG Filling Station
    • Skid Mounted LPG Filling Station

    For specific customization requirements, please contact us to discuss your application in detail.
