Tank Truck Equipment

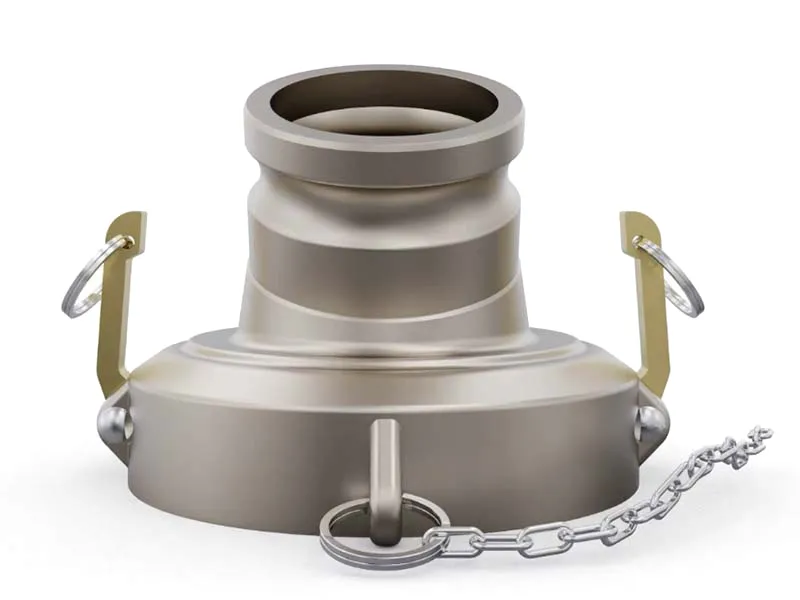

Gravity Drop Adapter/Gravity Coupler
Used in tank truck for connecting API adapter to the drop hose for the purpose of ensuring safe fuel delivery
Specifications
- Nominal diameter: 3''/4''
- Nominal pressure: 0.6MPa
- Seal material: Nitrile/PTFE
- Body material: Aluminum alloy
- Temperature range: -40℃ to +70℃
Product Overview
The gravity drop adapter, also known as a gravity coupler, is used during fuel unloading to connect a 4-inch API adapter on a tanker to a 3-inch or 4-inch drop hose, enabling smooth and secure fuel delivery. This coupling device is essential for bottom unloading operations, offering both safety and ease of use in fast-paced fuel handling environments.
Our gravity coupler is engineered for one-handed operation, allowing the operator to maintain full control of the hose during disconnection. Designed to be fully compatible with API RP-1004 4-inch tank truck bottom loading adapters, this unit features a 15° downward-angled hose outlet, promoting better fuel drainage and minimizing residue.
Features
- The guided locking design aligns with the API adapter’s 12 o’clock position, ensuring a secure, reliable connection and easier handling during operation.
- A 15° downward-angled outlet at the hose end ensures improved drainage efficiency.
- Available in both male and female coupling configurations for compatibility with various hose systems.
- Fully compatible with 4-inch API RP-1004 adapters, ensuring standardized connection.
- Constructed from anodized aluminum alloy for superior corrosion resistance and long service life.
- Fitted with nitrile (NBR) seals, offering reliable fuel resistance.
Drawings Download
What materials are commonly used in gravity couplers for tank trucks?
What materials are commonly used in gravity couplers for tank trucks?
Our gravity couplers are typically constructed from anodized aluminum alloy for durability and corrosion resistance. The sealing elements are made from either nitrile rubber (NBR) or PTFE (Teflon), depending on the specific chemical compatibility required.
What types of fuels are compatible with gravity couplers using NBR seals?
What types of fuels are compatible with gravity couplers using NBR seals?
Gravity couplers fitted with nitrile rubber seals are suitable for petroleum-based fuels, including gasoline, diesel, aviation fuel, and marine fuels. NBR is not recommended for use with strong acids, alkalis, or highly polar solvents.
What are the advantages of using PTFE seals in gravity couplers?
What are the advantages of using PTFE seals in gravity couplers?
PTFE seals provide broad-spectrum chemical resistance, making them ideal for use with corrosive acids, alkalis, and aggressive solvents. They are recommended for more demanding chemical transport environments where maximum seal integrity is required.
Other Tank Truck Components View All
With more than 2,000 types of tanker truck components, DESEINOR can realize one-stop purchase for customers.
Professional tanker parts manufacturer established in 2008
- 13000m² factory area
- 30,000 sets/year tanker spare parts production capacity
- Products have been exported to more than 50 countries
Get in Touch
We are always available to answer any questions you may have about our products and services.
- Email deseinor@shiyoujx.com

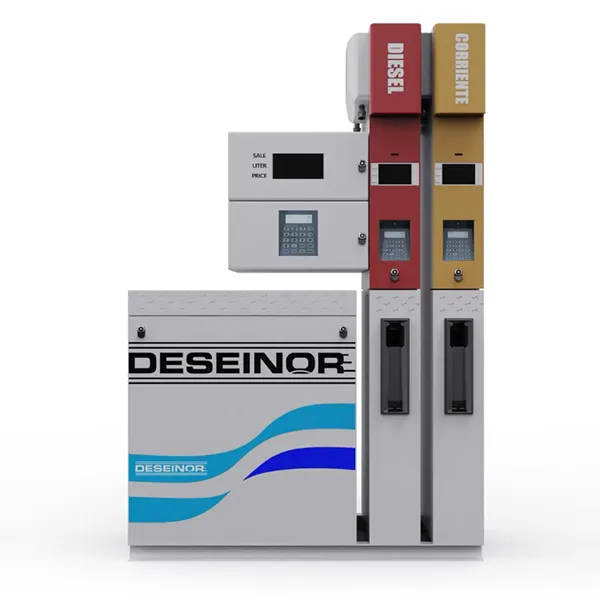

Fuel Station Equipment
