Tank Truck Static Grounding Devices

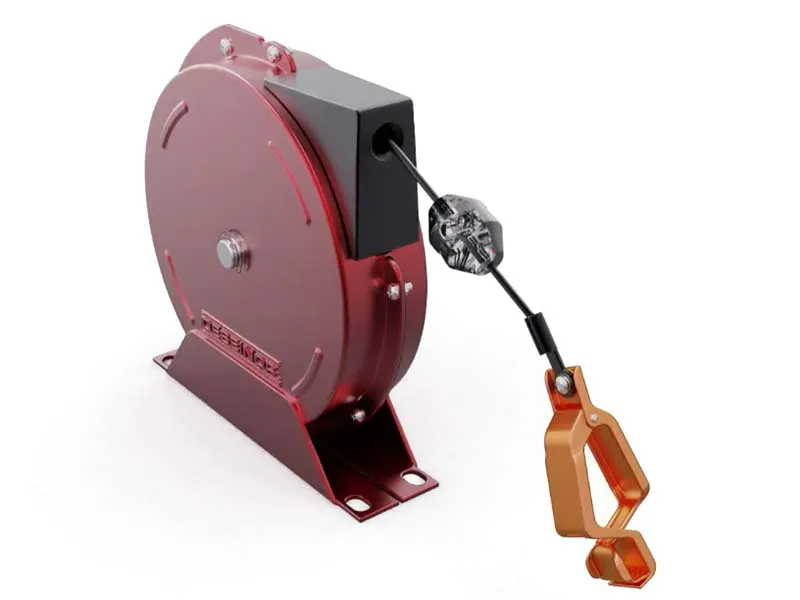

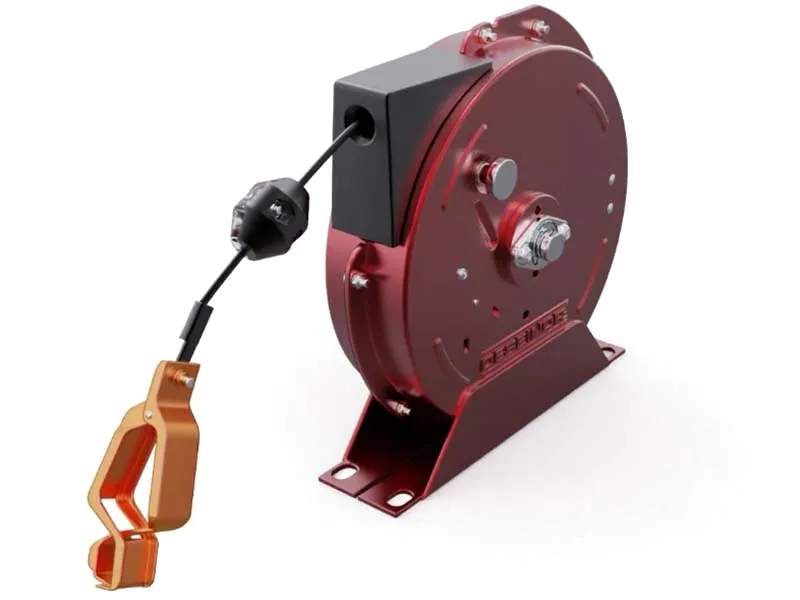

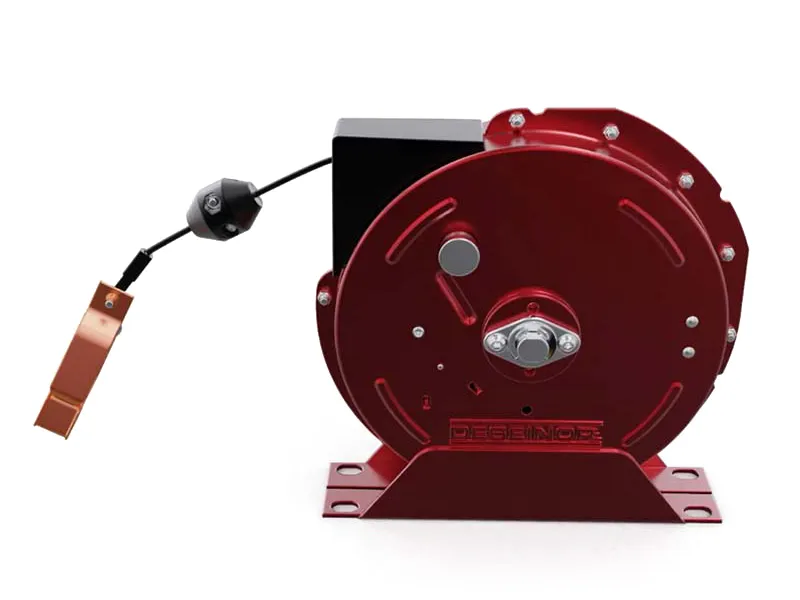

Static Discharge Cable Reel
Static grounding reel for safe refueling or transferring flammable materials when clamped to ground in hazardous areas with potentially explosive atmospheres
Tank Truck Static Grounding Devices
Static Discharge Cable Reel
Static grounding reel for safe refueling or transferring flammable materials when clamped to ground in hazardous areas with potentially explosive atmospheres
Specifications
- Cable length: 6m/10m/15m/20m/30m
- Outer shell material: Carbon steel
- Cable material: Copper
- Installation: Screw
- Temperature range: -20℃ to +70℃
- Current rating: 100AMP
Product Overview
The static discharge cable reel is a critical grounding device used on fuel tankers, tank containers, and loading systems to safely dissipate static electricity during the transfer of flammable liquids. By clamping the cable to a proper grounding point, the system prevents static buildup, reducing the risk of sparks and potential ignition in hazardous or explosive environments.
Our grounding reels are compact, durable, and easy to install on tank trucks, fueling stations, chemical loading racks, and even mobile service vehicles. They are built heavy duty and are designed for long lasting performance. When properly grounded, the reel ensures compliance with safety protocols during fuel delivery and liquid unloading operations for safe refueling or transferring flammable materials in hazardous environment.
Features
- Constructed from high-strength industrial-grade carbon steel for long-term durability
- Compact design makes it ideal for space-limited installations
- Powder-coated finish offers excellent corrosion resistance for outdoor or rugged use
- Integrated auto-retraction mechanism with high-tension spring ensures cable rewinds safely and efficiently after use
Drawings Download
How should the static discharge reel be installed?
How should the static discharge reel be installed?
The reel must be mounted using the through-holes on the base bracket, secured to a clean, conductive surface. After installation, fully extend the cable and engage the ratchet to prevent retraction. Avoid sharp bends in the hose to maintain the correct bending radius and prevent damage.
Does the static discharge reel have an automatic retraction feature?
Does the static discharge reel have an automatic retraction feature?
Yes, it is equipped with a high-tensile recoil spring that allows the cable to automatically retract, reducing wear and preventing tangling, enhancing both efficiency and safety during use.
