Tank Truck Equipment
API Adapter
Installed on road tankers to support bottom loading and unloading
Standard and Certification
- Compliant with API RP1004
- Certified under ADR (EU Regulation for the Transport of Dangerous Goods by Road)
Specifications
- Body Material: Aluminum alloy
- Nominal Diameter: 3 in.
- Nominal Pressure: 0.6 MPa
- Working Temperature: -40°C to +70°C
- Sealing Material: FKM / PTFE
- Connection: Flanged
- Dimensions (L × W × H): 59 × 31 × 32 cm/set
- Weight: 4.4 kg/pc

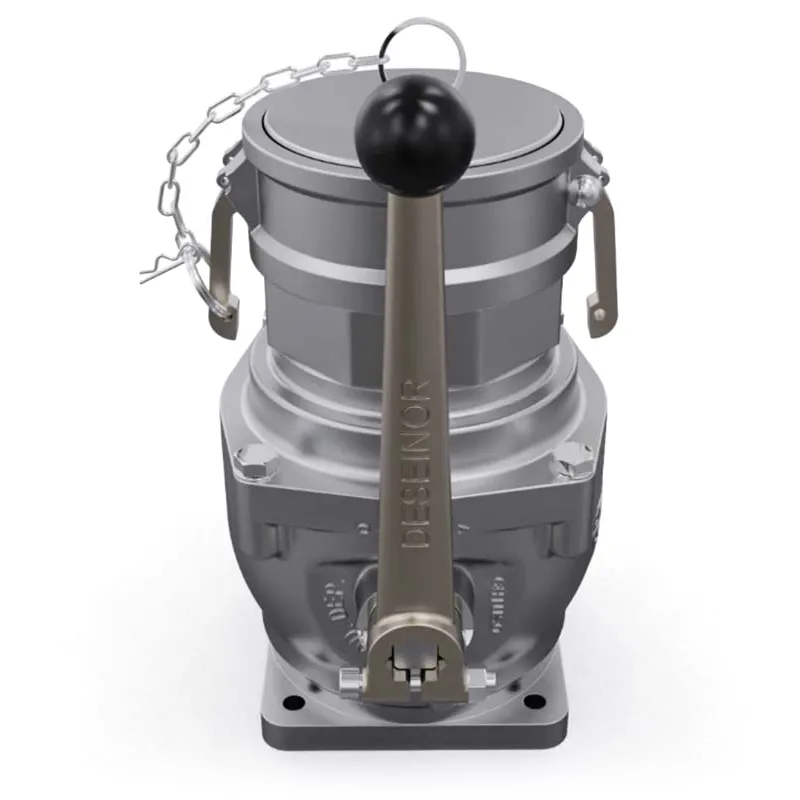

Product Overview
DESEINOR API adapters are installed on road tank trucks for loading at fuel loading racks and unloading through hoses at service stations. As a critical component of API bottom-loading systems, these adapters are carefully designed and manufactured to mate with standard API couplers.
The adapter features a lightweight, one-piece aluminum body and a hard-anodized nose ring. This design has become a standard adapter choice for many major oil companies worldwide. The API adapters’ simple construction and durable components support years of service with minimal maintenance while helping keep the adapter in reliable operating condition. The entire series also features a flat-bottom design to help ensure complete product discharge without contamination.
Features
- The adapter is constructed using gravity-cast aluminum with a heat-treated hard anodized coating to ensure extended service life and corrosion resistance.
- A heavy-duty poppet valve equipped with polyoxymethylene bearings provides smoother opening and reliable operation during loading and unloading.
- Designed in accordance with API RP-1004, it features a standard 4-inch TTMA flange for compatibility with global bottom loading systems.
- Compatible with a wide range of fuels, including diesel, biodiesel, gasoline, ethanol, and methanol.
- A flat-bottom design ensures complete drainage of residual product, preventing contamination.
- Fitted with Viton GFLT seals, the adapter meets fuel and additive compatibility requirements.
- The valve is made of aluminum alloy, while internal components are stainless steel, ensuring strength, durability, and chemical resistance.
Is the API adapter compatible with different types of tank truck systems?
Is the API adapter compatible with different types of tank truck systems?
Yes, our API adapters are manufactured according to international standards and are fully compatible with various fuel tanker systems and bottom loading equipment. This ensures efficient and secure fuel transfer across different brands and configurations.
What materials are used in your API adapters, and how resistant are they to corrosion?
What materials are used in your API adapters, and how resistant are they to corrosion?
The valve is made from high-strength aluminum alloy, treated with anodized surface protection to provide excellent resistance to corrosion and oxidation. It is suitable for use with gasoline, diesel, kerosene, and other common fuels.
How effective is the sealing performance of your API adapters during filling and unloading?
How effective is the sealing performance of your API adapters during filling and unloading?
Each adapter is fitted with high-quality Viton fluororubber seals, which maintain reliable sealing performance even under high-pressure or low-temperature conditions, effectively preventing fuel leakage.
